Product Characteristics

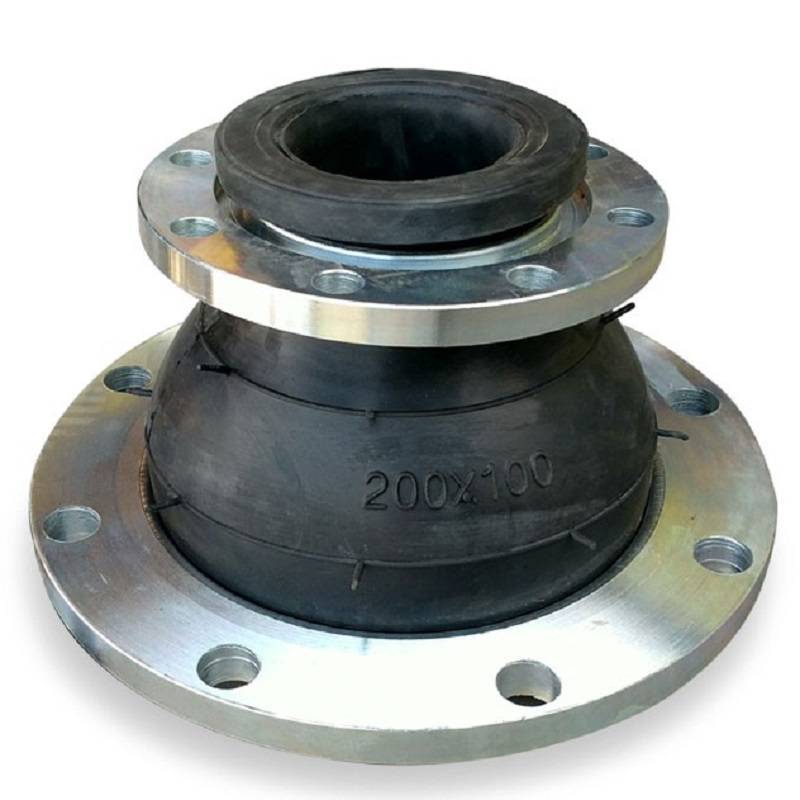

The main feature of KYT concentric reducer rubber joint is that it can solve the problem of different caliber when connecting metal pipelines, meanwhile, it has the function of vibration and noise damping, and it can save the installation parts of pipelines and save the cost.

1、Small volume, light weight, good elasticity, easy installation and maintenance.

2、It can produce transverse, axial and angular displacement when installing, not subject to the restriction that the pipes are not concentric and the flanges are not parallel.

3、When working, it can reduce the noise transmitted by the structure and has strong shock absorption ability.

Scope of use: Since the flexural rubber joint has good comprehensive performance, it is widely used in chemical industry, construction, water supply, drainage, petroleum, light and heavy industry, refrigeration, sanitation, plumbing, fire fighting, electric power and other basic engineering.

Installation of KYT Concentric Reducing Rubber Joints

1. This product can greatly reduce the vibration and noise of pipeline system, and can fundamentally solve the problems of interface displacement, axial expansion and contraction and different centering of all kinds of pipelines.

2. According to the different materials, it can be made into acid-resistant, alkali-resistant, corrosion-resistant, oil-resistant, heat-resistant and other types of varieties, to adapt to a variety of media and environments.

3. The material is special rubber, good sealing, light weight, easy installation and maintenance, long service life, but avoid contact with sharp metal instruments, so as not to puncture the ball.

4. If it is used overhead, it can be equipped with elastic bracket, and the bolts should be tightened by diagonal method during installation.

5. If the pressure of the pipeline is too high, bolts should be used to connect the flanges at both ends together.

6. If other standards are used for flange connection, it can be stated separately. The working pressure of this product is 0.6MPa and 1.0MPa.

7. The normal applicable medium of rubber joint is ordinary water with the temperature of 0-60°C. For special medium such as oil, acid and alkali, high temperature and other corrosive and hard texture, rubber joints with special resistant materials should be used, and should not be used blindly in series or in general.

Product Case

KYT Concentric Reducing Flexural Rubber Joints make important contribution to China's environmental protection

Low-carbon economy has become the topic of concern of the first proposal. Counselor of the State Council, China Renewable Energy Society Chairman Shi Dinghuan said in an interview, climate change has become a very real problem in today's world, and burning fossil energy emissions of greenhouse gases, is one of the root causes of this problem. China is still in the process of development to continue to grow, whether from the perspective of their own development or to avoid external accusations, to reverse the past high consumption, high emissions path of economic development has come to the point of urgency, China urgently need to through technological progress.

Petrochemical industry will make a big difference in Zhejiang Province, deputy to the National People's Congress, Hangzhou Chemical Industry Research Institute, Yao Xianping said that this year's two sessions, low-carbon will be a more popular word, the development of a low-carbon economy has become the direction of China's sustainable economic development. 2009 China's commitment to the world: by 2020 carbon dioxide emissions per unit of GDP relative to the year 2005 fell by 40% to 45%. this task is very difficult, requires the joint efforts of society as a whole, and the development of low-carbon economy has become the direction of China's economic development. This task is very difficult and requires the joint efforts of the whole society to accomplish. Petroleum and chemical industry as one of the carbon dioxide emission industry, is the responsibility.

Gongyi Dongli as a responsible manufacturer of pipeline fittings industry, has the responsibility and obligation to do a good job, I produced concentric reducer flexural rubber joints installed in the pipeline line can play a good vibration isolation and noise reduction, for the construction of pipeline construction in the area of the optimization of the environment has played a good role in promoting.

Ordering instructions

1、Customers have special requirements for the product, must provide the following instructions in the ordering contract:

(1) Structure length

(2) Connection form

(3) Nominal diameter, full diameter, reduction, pipe size

(4) The use of media and temperature, pressure range

(5) experiments, inspection standards and other requirements of the factory can be customized according to customer special requirements configuration and design of special products.

2、The factory can customize and design special products according to customer's special requirements.

3、If the product type and model are provided by the customer, the customer should correctly explain the meaning and requirements of the model, and sign the contract under the condition that the supply and demand sides understand each other.
