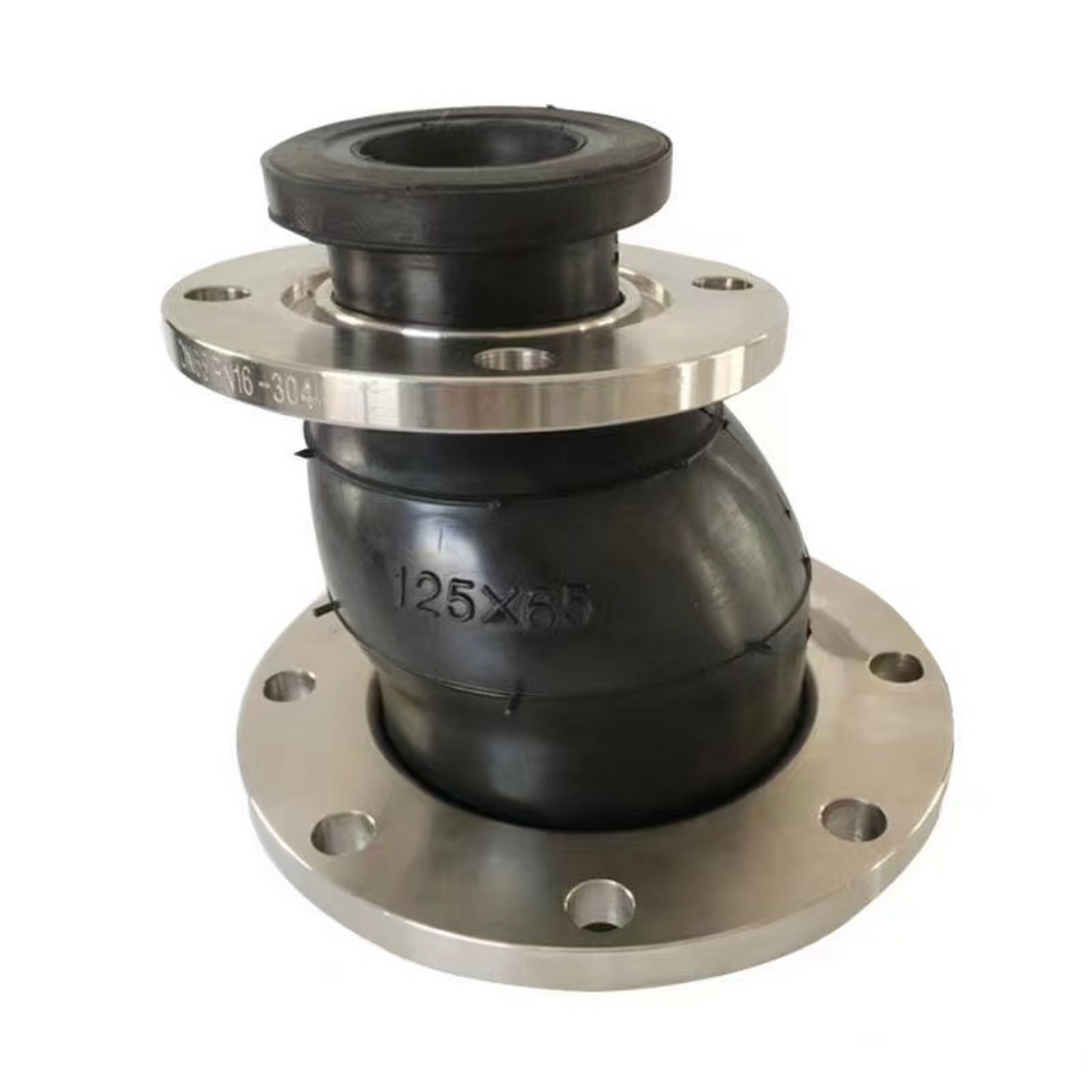

Product features

1. Pipeline - pump mounted eccentric head: is used to prevent cavitation, and the size of the pump inlet head should generally be installed top flat, which is to prevent the gas phase in the pipeline in the pump mouth accumulation, the formation of large bubbles into the pump chamber, damage to the pump. Only in one case can the bottom flat installation. That is the size of the head directly behind the elbow connected to the upward bend. In this case, the gas phase can not be accumulated.

2. Pump-pipe installation reducer joints: pump outlet and external piping system there are differences in the size of the head for the reducer, can be realized in different sizes of the two tubes of the straight line connection to achieve the pipeline reducer pipe fittings.

Eccentric reducer rubber joint axial displacement is: rubber joint in the direction of fluid flow (i.e., the direction of the central axis) of the elongation or compression.

Eccentric reducer rubber joint transverse displacement is: rubber joint in the direction perpendicular to the direction of the fluid that is the direction of the central axis of the direction of displacement.

Angular displacement of eccentric reducer rubber joint is: the sum of the angle between the vertical center line of two end faces of rubber joint and the original center axis.

Product Cases

KYP-F Eccentric Reducer Rubber Joints in Zhengzhou City Ring City Ecological Water System Circulation Project

On the 11th, the city's Ring City Ecological Water System Circulation Project was launched at the intersection of South Fourth Ring and Shibuli River. Gongyi Xinli as the main supplier of KYP-F Eccentric Reducing Rubber Joint, the product can effectively reduce the vibration of the pipeline, thus guaranteeing the long-term operation of the pipeline.

It is understood that Zhengzhou City Ring City Ecological Water System Circulation Project utilizes NiuKouYu diverted yellow water as the water source, and through the construction of two-stage pumping station and water pipeline in PuTianZe (to be constructed) and ChaoHe River, the water will be lifted to the upper reaches of HuaMaGou, BaishiLaoTanGou, ChaoHe River, Seventeen Mile River, Shibuli River, Xiong'er River, Jinshui River and other rivers in order to convey ecological water for them. The total design flow of the project is 7 cubic meters per second, and the pipeline is about 51 kilometers long from the water intake of Nursery Tianze pumping station to the Jinshui River diversion, with a branch line of about 11 kilometers long, and a total of 9 diversion points along the way. The total investment of the project is about 780 million yuan, is the city's 2015 water ecological civilization construction project. Upon completion, it will provide an economic and reliable water source for the city's ecological water system, effectively alleviate the city's water scarcity situation, and to some extent curb the trend of over-exploitation of groundwater. The project will also make the urban river ecological landscape environment has been significantly improved, but also conducive to the city's benign development of water ecology.

Dongli Pipeline as a professional manufacturer of eccentric reducer rubber joints, professional commitment to the pipeline industry for thirty years, has a wealth of experience in the production and installation of eccentric reducer rubber joints, the use of production technology, good production equipment to effectively protect the quality of eccentric reducer rubber joints, and every eccentric reducer rubber joints produced by our company have passed a rigorous inspection and testing before leaving the factory, the quality of the product is worthy of The quality of products is worthy of your trust.

Ordering instructions

1、Customers have special requirements for the product, must provide the following instructions in the ordering contract:

(1) Structure length

(2) Connection form

(3) Nominal diameter, full diameter, reduction, pipe size

(4) The use of media and temperature, pressure range

(5) experiments, inspection standards and other requirements of the factory can be customized according to customer special requirements configuration and design of special products.

2、The factory can customize and design special products according to customer's special requirements.

3、If the product type and model are provided by the customer, the customer should correctly explain the meaning and requirements of the model, and sign the contract under the condition that the supply and demand sides understand each other.
