Product Features

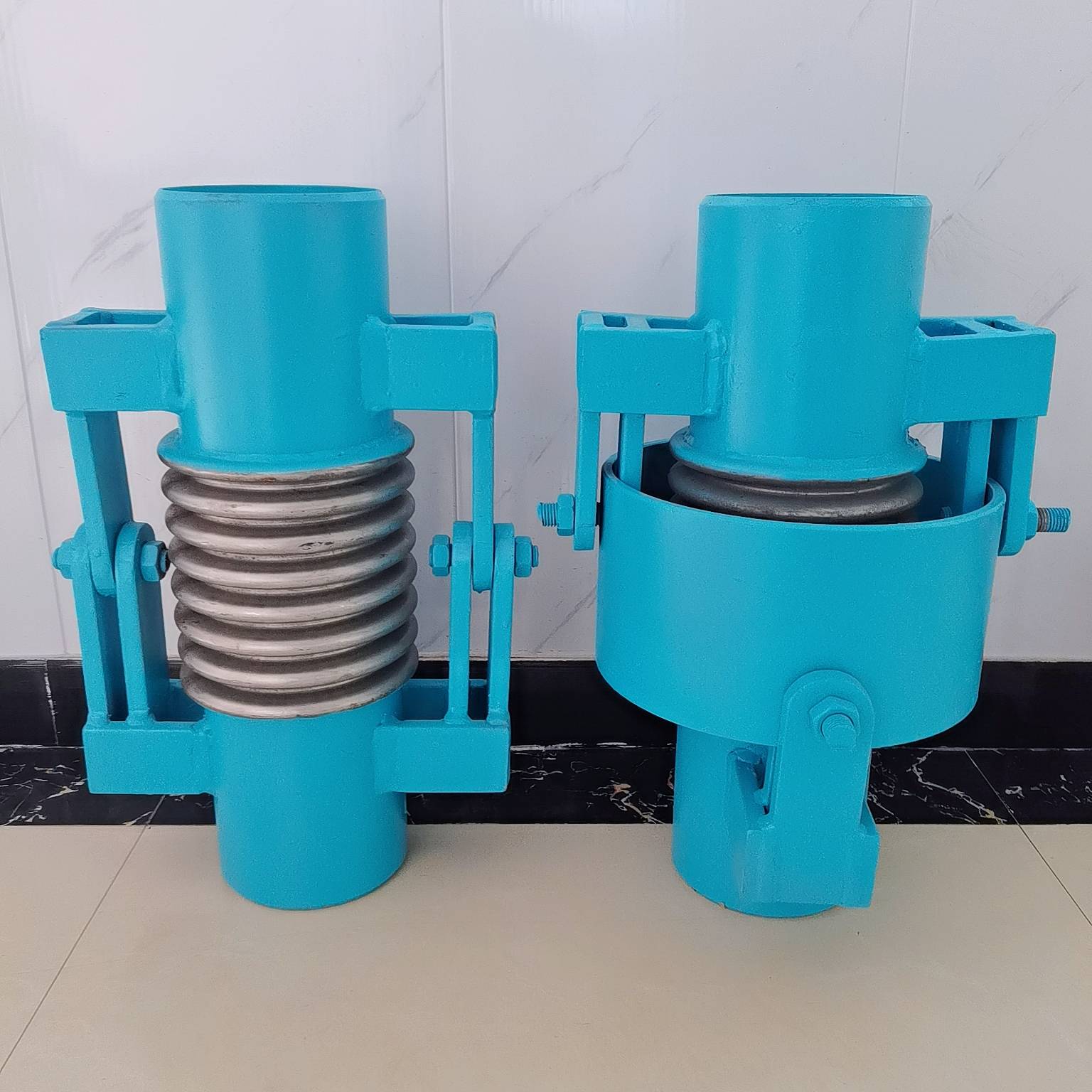

Universal Hinge Compensator realizes the angular displacement of the pipe in any plane by the action of a universal axis and a pin. The pin can also play a limiting role to a certain extent to avoid damage to the bellows. And the structure is reasonable, stable operation, which greatly reduces the late maintenance of pipeline lines. Universal hinge compensator is mainly used to compensate for the synthetic displacement of multi-plane bending pipe section by angular deflection. As the balance ring, pin and hinge plate can withstand the pressure thrust and other additional external forces, and absorb the internal pressure thrust itself, it will not produce external force on the pipeline, so the setup of pipeline support can be simplified. Universal hinged type corrugated compensator can compensate the angular displacement of pipeline in any upward direction. The difference between universal hinge type compensator and hinge type is that it has a universal ring, and there are two pairs of mutually perpendicular hinge structures in the circumference of the universal ring, so it can absorb the angular displacement of any plane, and the same absorption of transverse displacement requires two or three combinations.

ORDERING INSTRUCTIONS

1. Customers who have special requirements for the products must provide the following instructions in the ordering contract:

(1) Structure length

(2) Connection form

(3) Nominal diameter, full diameter, reduction, pipe size

(4) The use of media and temperature, pressure range

(5) experiments, inspection standards and other requirements of the factory can be customized according to customer special requirements configuration and design of special products.

2、The factory can customize and design special products according to customer's special requirements.

3、If the product type and model are provided by the customer, the customer should correctly explain the meaning and requirements of the model, and sign the contract under the condition that the supply and demand sides understand each other.
